5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V

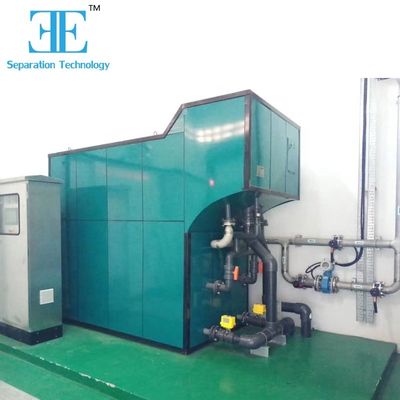

Ampliación de imagen : 5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V

Datos del producto:

Lugar de origen:	Shanghai, China
Nombre de la marca:	ECOPRO

Pago y Envío Términos:

Cantidad de orden mínima:	1
Precio:	$36,897

Contacto

Descripción detallada del producto

Productividad:	5m3/h	Peso:	1 900 kg
Tipo de procesamiento:	Filtración	Fuerza:	1 kW
Voltaje:	220 V, 380 V, 110 V	Capacidad:	5m3/h
Peso del electrodo:	1 900 kg	Peso vacío:	1 900 kg
Operación Peso:	7800 KG	Componentes centrales:	Motor
Rango de suministro de energía:	El valor de las emisiones de CO2 será el siguiente:	Material anódico:	Aluminio, hierro
Función de oxidación:	Oxígeno naciente [O]	Función de reducción:	hidrógeno naciente [H]
Control automático:	Sí
Resaltar:	5m3/h electrocoagulation wastewater treatment system , electrocoagulation system 220V-380V , industrial wastewater electrocoagulation system

Electrical Coagulation System Electrocoagulation Air Flotation Wastewater Treatment Equipment

Electrocoagulation Machine Electrocoagulation Tanks Electrocoagulation Water Treatment
Electrocoagulation system is a wastewater treatment process that utilizes a metal hydroxide produced by a soluble metal anode during flocculation to remove contaminants from water. The anode material typically uses aluminum, iron and other readily available and inexpensive metals.

Electrocoagulation System Fabricate Process

Electrocoagulation System Work Process

Electrocoagulation System Principle

Electrochemical reaction: Fe->Fe2++2e
Anodizing reaction: 2OH-->2[O]+2e->02+2e, The nascent oxygen [O] has the same strong oxidation function as UV, H2O2 and O3.
Cathode reduction: 2H++2e->2[H]->H2, nascent hydrogen can break bonds, COD, chromophore functional groups and multi-chain health.
The above oxidation and reduction functions occur continuously on the plates.

Electrocoagulation System Features

Wide adaptability of power supply: 220V-480VAC range is available
Safe and convenient: embedded isolated voltage circuit to ensure electrical safety; various abnormal indications and protection (phase loss, overload, overcurrent, overvoltage, zero voltage, etc.)
Automatic control: can automatically detect the ion state in the water to adjust the current and voltage
Energy saving: Fe(OH)2 and Fe(OH)3 are excellent coagulants. No need for polymer is a major feature of this equipment

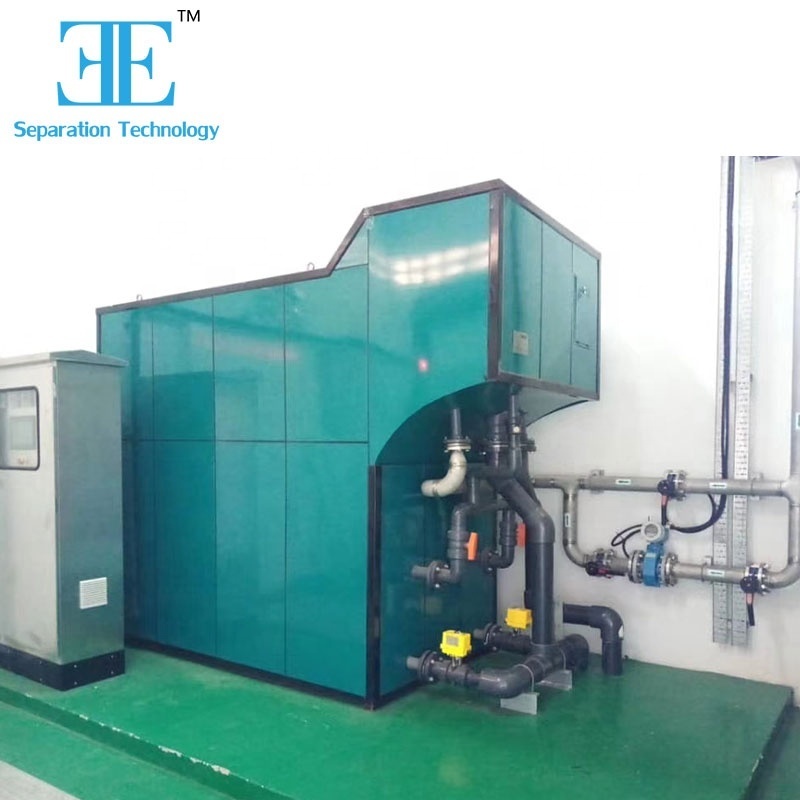

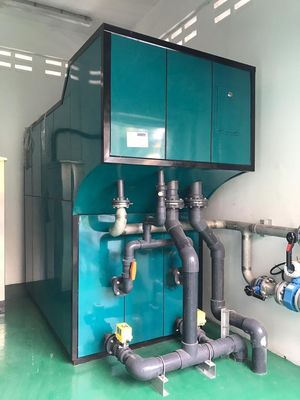

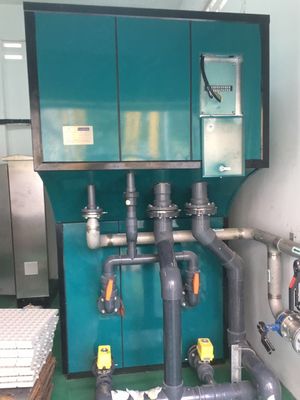

Electrical Flocculation System Work Site for Reference
