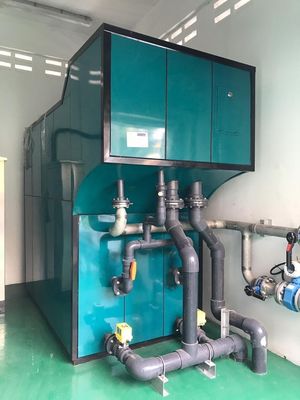

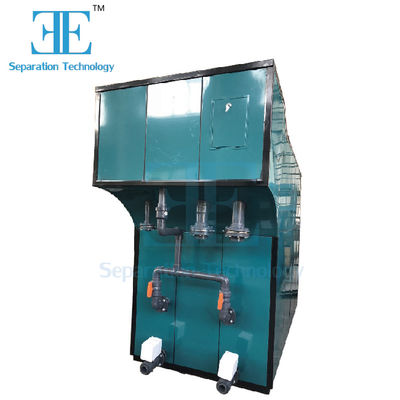

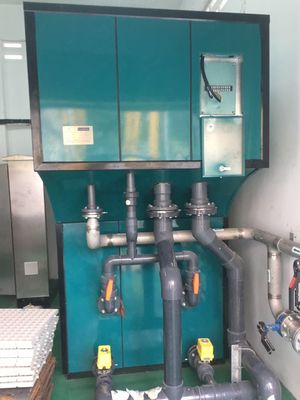

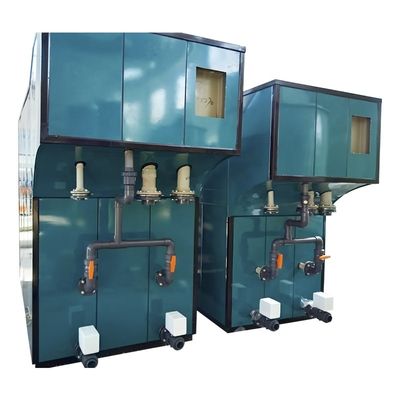

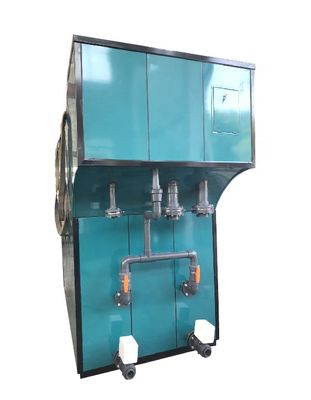

40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW

Ampliación de imagen : 40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW

Datos del producto:

Lugar de origen:	Shanghai, China
Nombre de la marca:	ECOPRO

Pago y Envío Términos:

Cantidad de orden mínima:	1
Precio:	$36,897

Contacto

Descripción detallada del producto

Productividad:	40m3/h	Peso:	2298 kg
Tipo de procesamiento:	Filtración	Fuerza:	3 kW, 30 kW, 20 kW
Voltaje:	220 V, 380 V, 110 V	Capacidad:	40m3/h
Peso del electrodo:	11500 kilogramos	Peso vacío:	3500 kg
Operación Peso:	31000kg	Capacidad de tratamiento:	1m3/h
Consumo de energía:	3kw/h	Dimensión:	10006501500mm
Peso del electrodo:	650 kg	Peso vacío:	400 kg
Operación Peso:	1500 kg
Resaltar:	40m3/h electrocoagulation wastewater system , electrocoagulation system 3-30 kW , industrial wastewater treatment electrocoagulation

Electrocoagulation System for Wastewater Treatment

Our electrocoagulation equipment is an advanced water treatment solution that utilizes metal hydroxide produced by soluble metal anodes during flocculation to effectively remove contaminants from water. The system typically uses aluminum, iron, and other cost-effective metals for optimal performance.

Technical Specifications

Treating Capacity	1m³/h
Power Consumption	3kw/h
Dimension	1000×650×1500mm
Electrode Weight	650kg
Empty Weight	400kg
Operation Weight	1500kg

Working Principle

The electrocoagulation system operates through electrochemical reactions:

Electrochemical reaction: Fe→Fe²⁺+2e
Anodizing reaction: 2OH⁻→2[O]+2e→O₂+2e (nascent oxygen has strong oxidation function)
Cathode reduction: 2H⁺+2e→2[H]→H₂ (nascent hydrogen breaks bonds and functional groups)

These oxidation and reduction functions occur continuously on the plates for effective water treatment.

Key Features

Wide power adaptability: Operates within 220V-480VAC range
Safe operation: Embedded isolated voltage circuit with multiple protection mechanisms (phase loss, overload, overcurrent, etc.)
Automatic control: Detects ion state in water to automatically adjust current and voltage
Energy efficient: Utilizes Fe(OH)₂ and Fe(OH)₃ as excellent coagulants without requiring polymers

About Our Company

Shanghai Ecopro Environmental Engineering Co., Ltd., established in 2017, specializes in comprehensive water and wastewater treatment equipment and separation services. As professional environmental engineers, we provide industry-leading equipment, services, and systematic solutions including static screens, rotary drum screens, polymer dosing systems, DAF systems, electrochemistry systems, screw presses, plate filter presses, sludge dryers, Mutag Biochips, sodium hypochlorite generators, and various pumps.

Product Packaging
