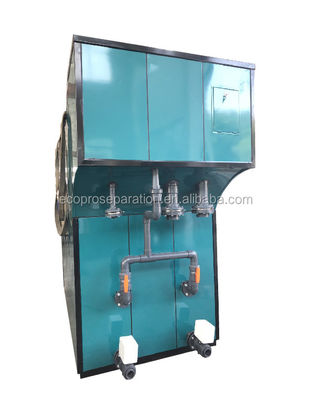

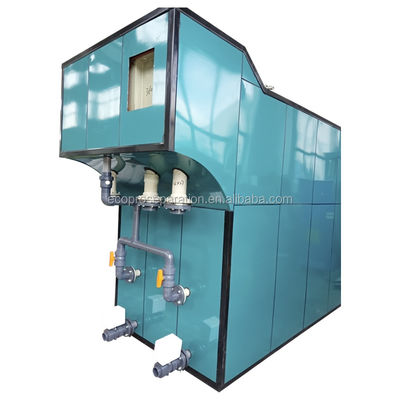

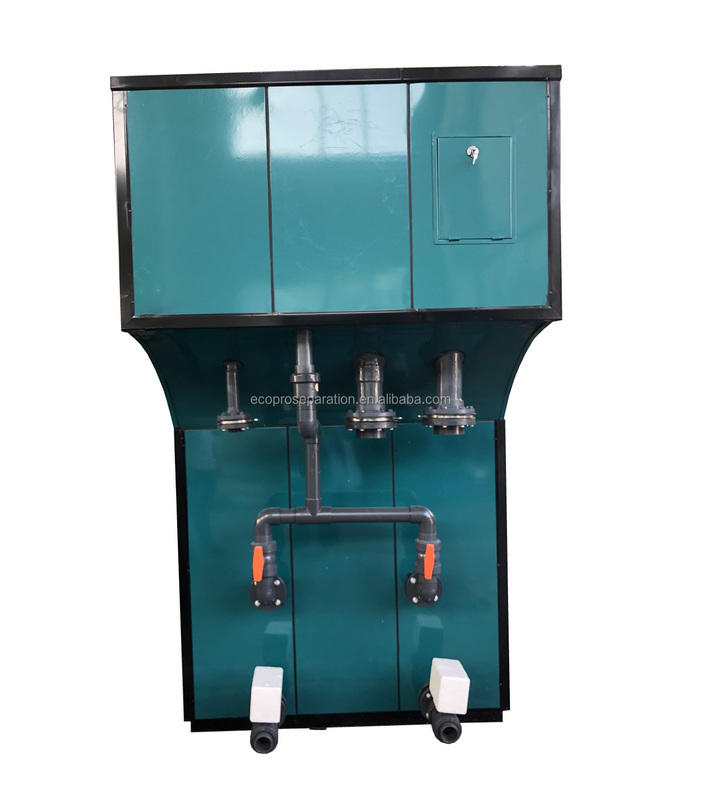

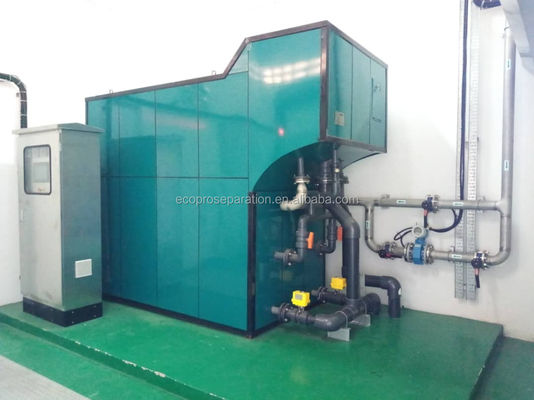

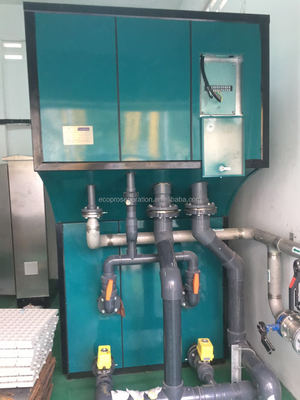

40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW

Ampliación de imagen : 40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW

Datos del producto:

Lugar de origen:	Shanghai, China
Nombre de la marca:	ECOPRO

Pago y Envío Términos:

Cantidad de orden mínima:	1
Precio:	$38,627

Contacto

Descripción detallada del producto

Productividad:	40m3/h	Peso:	2298 kg
Tipo de procesamiento:	Filtración	Fuerza:	3 kW, 30 kW, 20 kW
Voltaje:	220 V, 380 V, 110 V	Capacidad:	40m3/h
Peso del electrodo:	11500 kilogramos	Peso vacío:	3500 kg
Operación Peso:	31000kg	Capacidad de tratamiento:	1m3/h
Consumo de energía:	3kw/h	Dimensión:	10006501500 mm
Peso del electrodo:	650 kg	Peso vacío:	400 kg
Operación Peso:	1500 kg
Resaltar:	40m3/h electrocoagulation wastewater system , electrocoagulation system 3-30 kW , industrial wastewater treatment electrocoagulation

High Voltage Pulsed Electrocoagulation Equipment for Waste Water Treatment

Our electrocoagulation system is an advanced wastewater treatment solution that utilizes metal hydroxide produced by soluble metal anodes during flocculation to effectively remove contaminants from water. The system typically uses aluminum, iron, or other readily available metals as anode materials.

Technical Specifications

Parameter	Value
Treating Capacity	1m³/h
Power Consumption	3kw/h
Dimension	1000×650×1500mm
Electrode Weight	650kg
Empty Weight	400kg
Operation Weight	1500kg

Electrocoagulation System Principle

Fe → Fe²⁺ + 2e

2OH⁻ → 2[O] + 2e → O₂ + 2e

2H⁺ + 2e → 2[H] → H₂

The electrochemical process generates nascent oxygen with strong oxidation capabilities similar to UV, H₂O₂, and O₃. Simultaneously, nascent hydrogen breaks chemical bonds, reduces COD, and degrades chromophore functional groups. These oxidation and reduction reactions continuously occur on the electrode plates.

System Features

Wide power supply adaptability: Operates within 220V-480VAC range
Safe and convenient: Embedded isolated voltage circuit ensures electrical safety with multiple protection mechanisms (phase loss, overload, overcurrent, overvoltage, zero voltage)
Automatic control: Detects ion state in water to automatically adjust current and voltage
Energy efficient: Utilizes Fe(OH)₂ and Fe(OH)₃ as natural coagulants, eliminating need for polymer additives

Manufacturer Information

Shanghai Ecopro Environmental Engineering Co., Ltd., established in 2017, specializes in comprehensive water and wastewater treatment equipment and separation services. As a professional environmental engineering company, we provide industry-leading equipment, services, and systematic solutions including static screens, rotary drum screens, polymer dosing systems, DAF systems, electrochemistry systems, screw presses, plate filter presses, sludge dryers, Mutag Biochips, sodium hypochlorite generators, and various pumps.

Product Packaging

etiqueta:

Persona de Contacto: Shirley

Teléfono: 86-17320131993

Fax: 86-21-58900516
